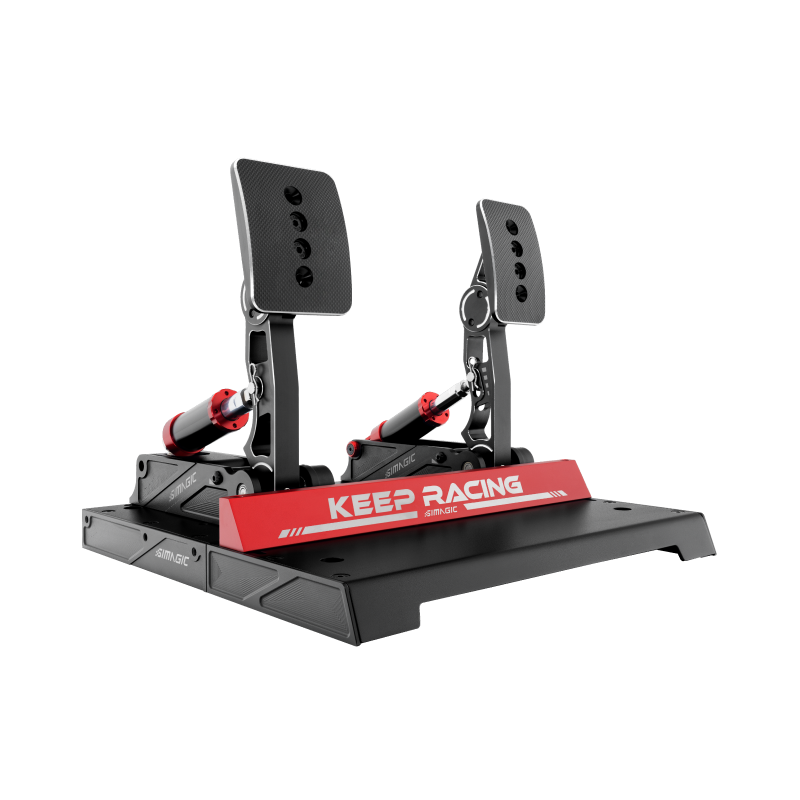

P1000-F Pedal
Tax excluded. Shipping calculated at checkout
| Product Name |
P1000-F/P1000-FRS
|
| Resolution |
12Bit（4096）【High accuracy sensor】
|
| USB Connection |
PC、SIMAGIC Wheelbase(Can-Bus Port)
|
| Adjustable Travel | Supported |
| Adjustable Spring Force Level |
Brake
|
| Hall angle sensor/ Loadcell sensor |
(Throttle - Hall angle sensor) (Brake-Hall angle sensor/Loadcell sensor) |
| Loadcell sensor |
100KG
|
| Haptic Pedal Reactor | Optional |
| Hydraulic Cylinder |
Optional/lncluded
|
| Inverted Installation |
Optional (Can't change the oil container after invertion)
|
| Pedal Plate |
Anodized Aluminum Alloy
|
| Angle/Position Adjustment | Supported |
| Adjustable Linearity | Supported |
| Adjustable Brake Force | Supported |
| Adjustable Deadzones | Supported |
| Pedal Control Box | Included |
| Building Material |
CNC Aluminum Alloy
|
| Dimensions ( Length x Width x Height) |
334.8mm x336mm x 267mm
|
| Net Weight |
4.65kg
|
Tech
Alpha EVO Wheelbase
New base, New Standards
Evo is not just a slogan. An all-new generation of wheelbase. Ultra-Low lnertia servo Motor, Zero-Cogging Tech, higher functionality and wider compatibility. Plus an all-new 21-bit encoder forbetter fidelity and road feel than ever.
Ultra-Low Inertia Tech
Zero-Cogging Tech
Lighter weight, reduced inertia. Sharper, smoother, and more precise force feedback.
Fine tuned to perfection. Our signature motor design offers highly consistent feedback that fans have grown to love.
Dynamic Force Domain Filter Algorithm(DFDF)
Optimized to accompany the new motor, giving extra FFB fidelity, further improving handling.
21-Bit Encoder
Lower inertia, better modularity. EVO offers precision unlike any base we've produced before.
Open Ecosystem
Further improved compatibility for third-party devices.
Dual-Mode Connectivity
Reliable and versatile. Built to withstand hours upon hours of hard racing. That's the SIMAGlC difference.
A Connection That clicks
Magnetic socket design, maximising contact security.
Patent Slip Ring Design
Built-in wired connection with higher bandwidth to support future wheels.
Hyper Cool
An all-new active cooling system and temperature regulator ensure you always get 100% of available torque from your EVO.
Perfect for endurance sessions.
Solid as a Rock
High-strength shell provides a more stable and secure driving experience.
Simply Your Best Bet
Wide installation support for all kinds of rigs. Profile rig? Third party sim rigs? Table? We've got you covered.
Note: Side/Front/Desktop mount brackets are optional accessories, sold separately. Frontbracket installation disables all magnetic connectivity. Avoid installation if magnetic accessories are needed.
Race-Ready with SimPro Manager
SimPro Manager is our software solution, ensuring a seamless gameplay experience across major titles, with extensive customizability, native presets developed in house, and so much more.
SIMAGIC Official Customer Support
Note: For wheelbases, steering wheels, and pedals purchased on or after July 15, 2023, SIMAGIC provides a 24-month warranty starting from the date of purchase. Please refer to the official website for the latest after-sales policy.
Product Specifications
| Alpha EVO Sport | Alpha EVO | Alpha EVO Pro | |
| Motor Type | Ultra-Low Inertia Motor | Ultra-Low Inertia Motor | Ultra-Low Inertia Motor |
| Max Torque | 9 Nm | 12 Nm | 18 Nm |
| Wireless Power | Supported | Supported | Supported |
| 3rd Filter | Supported | Supported | Supported |
| Encoder Resolution | 21-bit | 21-bit | 21-bit |
| Frequency | 180MHZ | 180MHZ | 180MHZ |
| Response Rate | 20KHZ | 20KHZ | 20KHZ |
| Quick Release | Full support for SIMAGIC QR50 & QR70 & QR-A | Full support for SIMAGIC QR50 & QR70 & QR-A | Full support for SIMAGIC QR50 & QR70 & QR-A |
| Material | Die-casted aluminum | Die-casted aluminum | Die-casted aluminum |
| Dimension | 130x110x281mm | 130x110x281mm | 130x110x317mm |
| Net Weight | 6.236kg | 6.236kg | 8.627kg |
| Accessories | USB-B Cable, Type-C Cable, 1.5-Meter Power Supply, Wheelbase Power, Installation Kit | USB-B Cable, Type-C Cable, 1.5-Meter Power Supply, Wheelbase Power, Installation Kit | USB-B Cable, Type-C Cable, 1.5-Meter Power Supply, Wheelbase Power, Installation Kit |
Note: Minor variations in components (e.g. screws, knobs) may occur between batches. Actual product may vary slightly from images shown.
