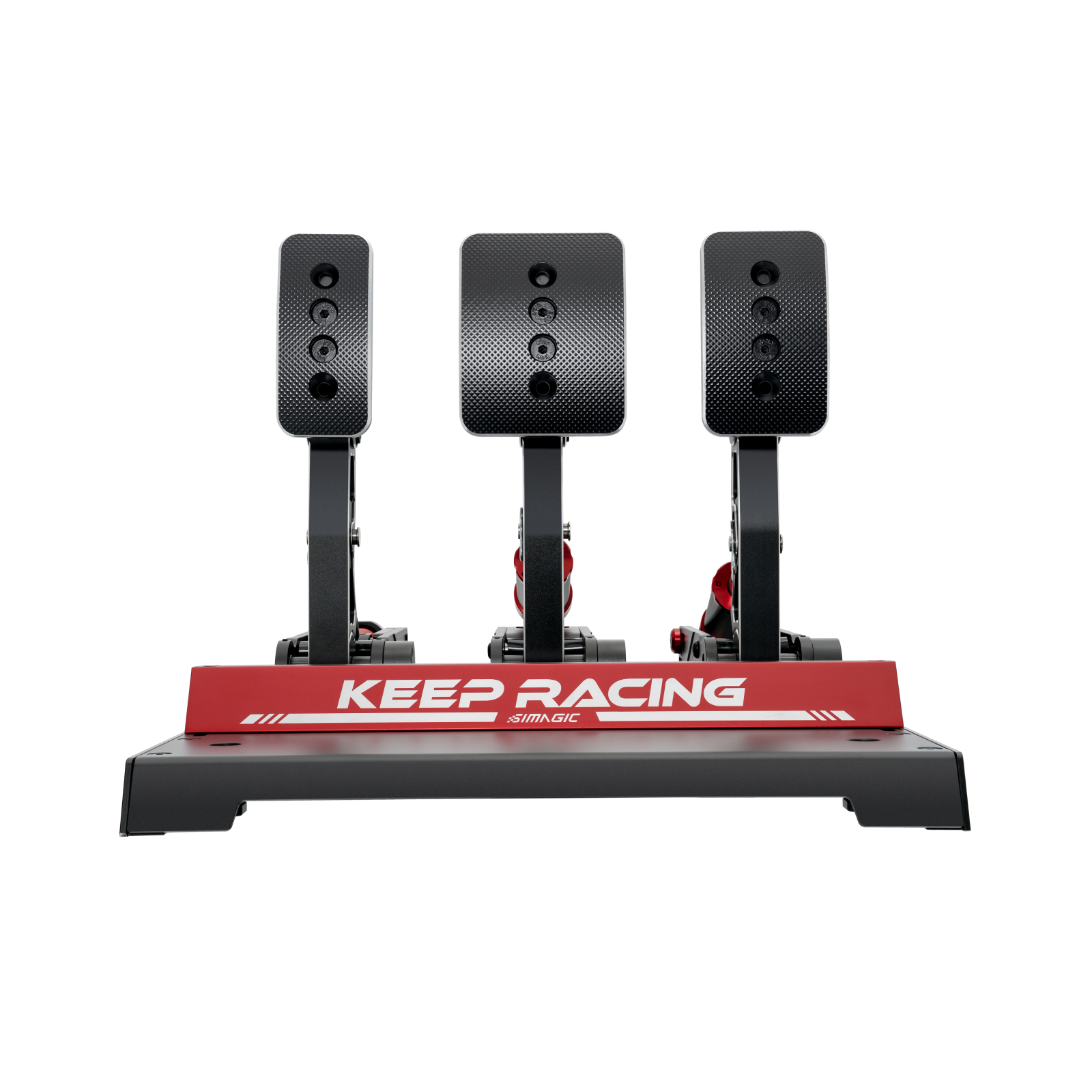

P1000 Modular Pedals

The new standard in performance.

Haptic Pedal Reactor

Hydraulic System

Inverted Installation Version

SIM RAY Lighting Module

Freely Customizable

Multiple Adjustments

Pro-Level Design, Backed by Real-World Experience

Jointly developed with real race engineers.

Ted Wang

Team KRC Technical Director, Chongqing Technology
Engineering Major, Masters from Oxford Brookes University

DJ

Director of SIMAGIC Motorsports Department,
Race chassis and data analysis engineer,
ACO SRO WSC Data Officer
FIA and CAMF Technical Delegate

Refreshed Design, Simplified Installation

Installed and ready to race with just 8 screws.
Comes complete with profile installation plate and wiring box.
Easily matched and installed with profile brackets.

Pedals Built For Anything

Standard

Feel like you're strapped into a proper race car. The standard P1000 pedal setup mimics real-world race seating, delivering a direct, competitive driving experience with uncompromising pedal feel and control.

Inverted

Prefer the feel of a road car or GT-style cockpit? The P1000i inverted setup places the pedals in a hanging position, replicating passenger car ergonomics for added comfort and realism in endurance stints or casual sessions.

Dual Pedal Power. Formula Ready.

P1000-F

A clean, compact dual-pedal setup made for formula-style rigs. Precision-tuned for throttle and brake performance, with modularity at its core. Upgrade or expand as your rig evolves.

P1000-FRS

Take it up a gear. The P1000-FRS adds hydraulic brake feedback for those who want a firmer, more realistic pedal feel under pressure. Ideal for serious sim racers who demand race-grade consistency.

Versatility for a Modern Generation

Modular integrated design, with included rubber pads for quicker installation.
Customize and tune the P1000's to your liking.

Race Engineer Recomended Setups

Opt for these setups for a better feel under braking.

GT4

Note: Select Loadcell sensor

TCR

Note: Select Loadcell sensor

For Sports Cars (Soft)

Note: Select Angle sensor

Dominate the Race Track

Load cell sensor and Hall angle sensor ready.
Use the Hall angle sensor for long travel, better for standard production cars,
or utilize the Load cell sensor for short travel, best for motorsports and formula-style cars.

Full Metal Structure

It's all about the details.
Machined aluminum housing,
polished and oxidized.

Meticulously Crafted for Durability

Peak performance, every session.

CNC technology for maximum precision.

Built to last with meticulous durability testing.

An all-aluminum alloy metal structure ensures outstanding performance under intense usage.

Built to Adapt to Your Setup

Pedal spacing and height?
Fully adjustable,
with the option to configure
throttle and brake travel, too.

Whatever Your Style,
Just Race.

Pitch angle,
pedal inputs...
All configurable.

Take Immersion Even Further. P-HPR (Haptic Pedal Reactors)

SIMAGIC's newly patented linear motor simulates the same forces experienced in real automobiles, offering truly realistic feedback. Fully adjustable via our intuitive SimPro Manager, the haptics are tunable to perfection, giving unprecedented immersion into anything you're racing.

P-HYS (Hydraulic System)

Provides accurate reproduction of damping and
rebound of genuine car brakes.

P-HTS (Hydraulic Throttle System)

A 6-step adjustable damper that gives the throttle a configurable, weighty feeling.
Tune to your liking for the best driving experience.

Sim Ray Lighting Module

The optional *RGB heel stop (P-SRH) and *RGB bottom strip (P-SRB) supports telemetry data feedback and customizable lighting colors eg. red flashes on brakes and green on throttle. *P-SRB will receive future updates to support this.

SimPro Manager 2.0

SIMAGIC's signature suite for freedom in how you approach your racing.
Adjust deadzones, output curves, with support for the community-loved SimHub app.

Upgrade As You Go

Some modular upgrades requires P-APS accessories power supply, for more details please contact customer service (all optional equipments only need 1 external battery)

Product Name

P1000/P1000i

P1000-F/P1000-FRS

P1000-RS/P1000i-RS

Resolution

12Bit(4096)
【High accuracy sensor】

12Bit (4096)【High accuracy sensor】

12Bit (4096)
【High accuracy sensor】

USB Connection

PC、Simagic Wheelbase
(via Bus Port)

PC、SIMAGIC Wheelbase(via Bus Port)

PC、SIMAGIC Wheelbase(via Bus Port)

Adjustable Travel

Supported

Supported

Supported

Adjustable Spring Force Level

Clutch, Brake

Brake

Clutch, Brake

Hall angle sensor/
Loadcell sensor

(Throttle - Hall angle sensor)
(Brake-Hall angle sensor/Loadcell sensor)
(Clutch-Hall angle sensor)

(Throttle - Hall angle sensor)
(Brake-Hall angle sensor/Loadcell sensor)

(Throttle - Hall angle sensor)
(Brake-Hall angle sensor/Loadcell sensor)
(Clutch-Hall angle sensor)

Loadcell sensor

100KG

100KG

100KG

Haptic Pedal Reactor

Optional

Optional

Optional

Hydraulic Cylinder

Optional

Optional/lncluded

Included

Inverted Installation

P1000i

Optional
(Can't change the oil container after invertion)

Optional/lncluded

Pedal Plate

Anodized Aluminum Alloy

Anodized Aluminum Alloy

Anodized Aluminum Alloy

Angle/Position Adjustment

Supported

Supported

Supported

Adjustable Linearity

Supported

Supported

Supported

Adjustable Brake Force

Supported

Supported

Supported

Adjustable Deadzones

Supported

Supported

Supported

Pedal Control Box

Included

Included

Included

Building Material

CNC Aluminum Alloy

CNC Aluminum Alloy

CNC Aluminum Alloy

Dimensions ( Length x Width x Height)

334.8mm x 336mm x 267mm/
348mm x 489.8mm x 368.5mm

334.8mm x336mm x 267mm

334.8mm x 336mm x 267mm/348mm x489.8mm x 368.5mm

Net Weight

5.65kg/7.60kg

4.65kg/5.00kg

6.00kg/8.50kg
