CONNECTIVITY
Ready for Every Setup
Connect directly to a PC or compatible SIMAGIC wheelbase. Add P-HPR haptics for telemetry-driven feedback, with dedicated ports for power, data and ecosystem expansion.
Expandable Modular System
Patented Full-Range Adaptive Sensing Tech
Die-Cast Aluminum Body
Adjustable Handbrake Force
Dual Modes, Five Angles
Multi-Port Connectivity
MODULAR
Build It Your Way

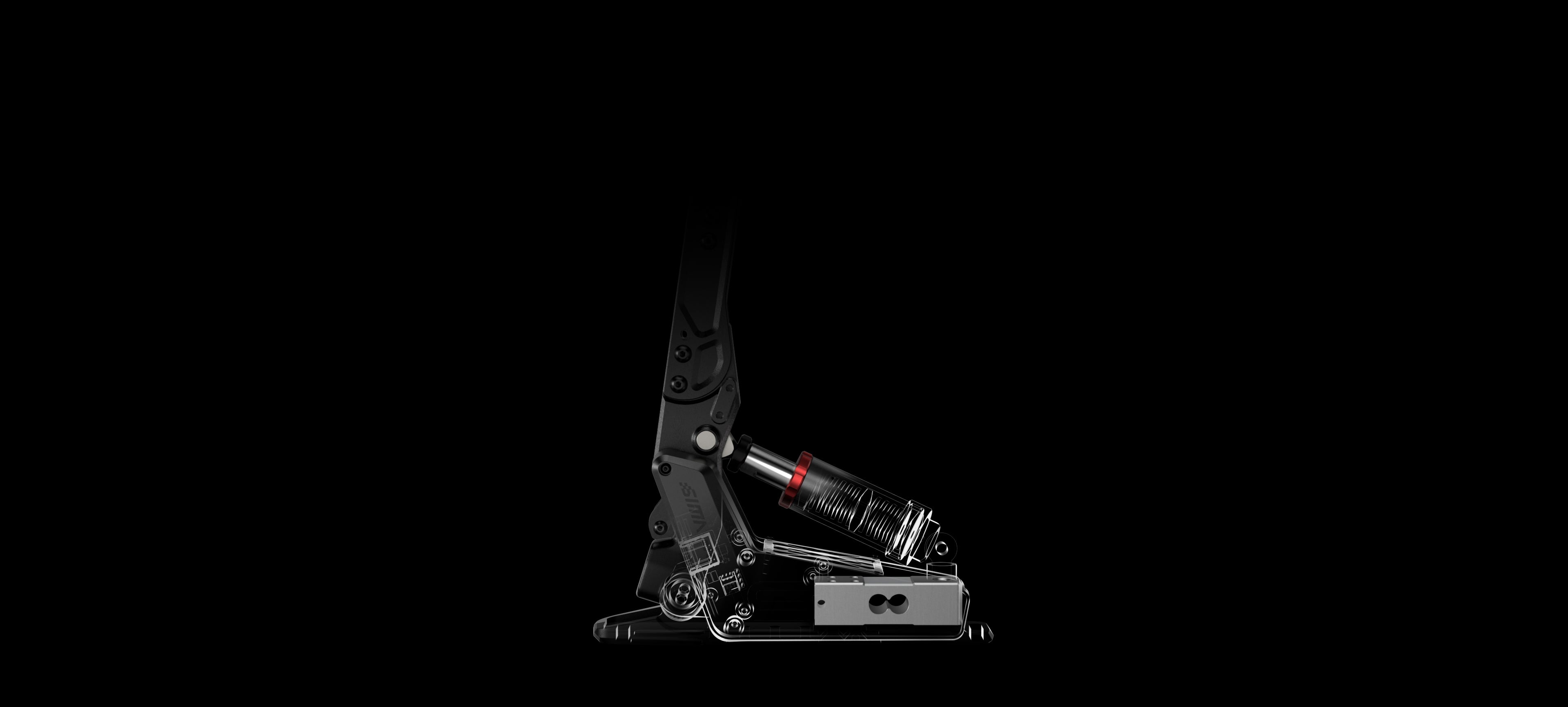

TB-Neo is built around an expandable modular platform. Swap elastomers to tune the resistance, add a hydraulic module for damped response, or integrate a haptic reactor for telemetry-driven feedback.
*Hydraulic and haptic modules sold separately.
PRECISION
Full-Range Adaptive Sensing Tech
SIMAGIC's patented Full-Range Adaptive Sensing Technology optimises gain across the full range, capturing fine movement while remaining stable under heavier loads. The result is smooth, repeatable input from initial engagement to full pull.
TB-Neo Handbrake
Comparable Products
Time(s)
Note: A smoother curve means a cleaner, more controllable signal. TB-Neo maintains consistent output with fewer fluctuations throughout the pull.
DURABILITY
Built to Last
Die-cast aluminium construction and precision CNC machining deliver long-lasting rigidity and durability.
CUSTOM TUNING
Your Feel, Your Way

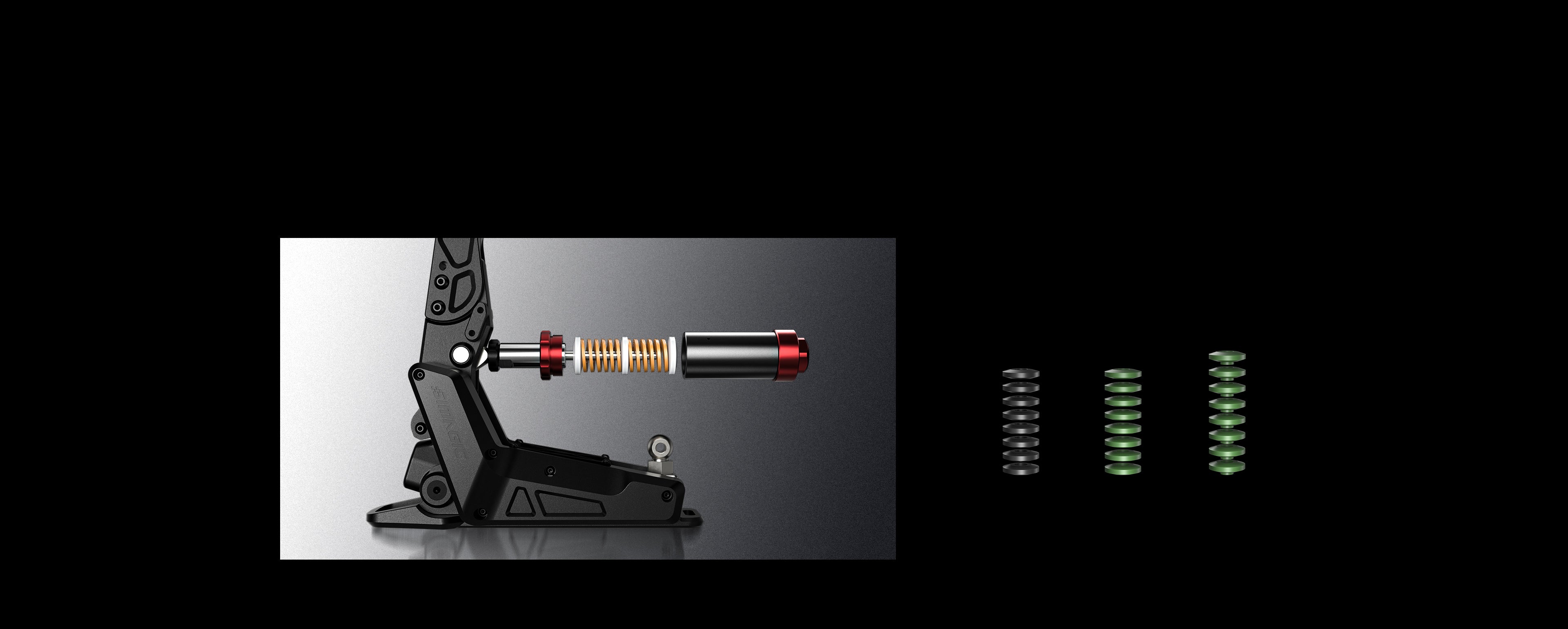

Fine-tune resistance, travel and return with interchangeable elastomers. TB-Neo arrives with a versatile standard setup, plus additional hardness options for further adjustment.
Included Replacement Elastomers
Black O-Ring
Green O-Ring
Green T-Type
Hardness (soft → hard):
Yellow Spring < Green T-Type < Green O-Ring < Black O-Ring
RECOMMENDED SETUPS
Dial It In
Use these recommended combinations as a baseline, then fine-tune the pull to suit your driving style.
Light & Smooth Pull
Firm Stop
Dual-Stage Feel
Hydraulic Feel
Smooth, light resistance with quick return and long travel.
Strong return with a direct, solid stop and shorter travel.
Soft at first, then firmer as you pull.
Damped, linear response with a realistic hydraulic feel.
ADJUSTABILITY

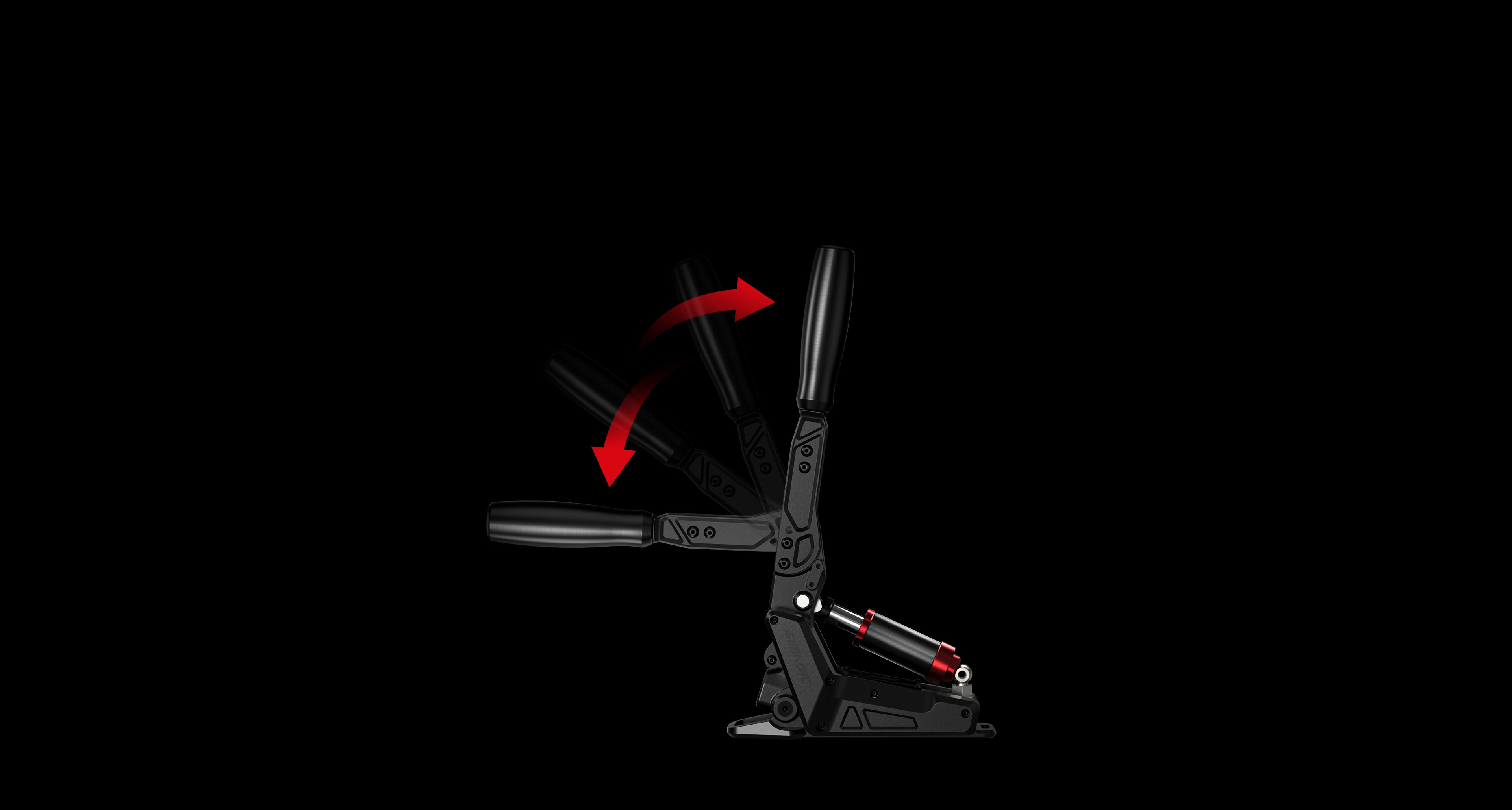

5 Angles. 2 Modes. Zero Hassle.
Switch between horizontal and vertical configurations, then choose from five handle angles. Build a natural position for street, rally, drift or track-focused setups.
DC
DC
USB-C
RJ45
TRUSTED PERFORMANCE
Pull After Pull
A high-precision load cell captures every input with stable, repeatable accuracy across the full range.
SOFTWARE

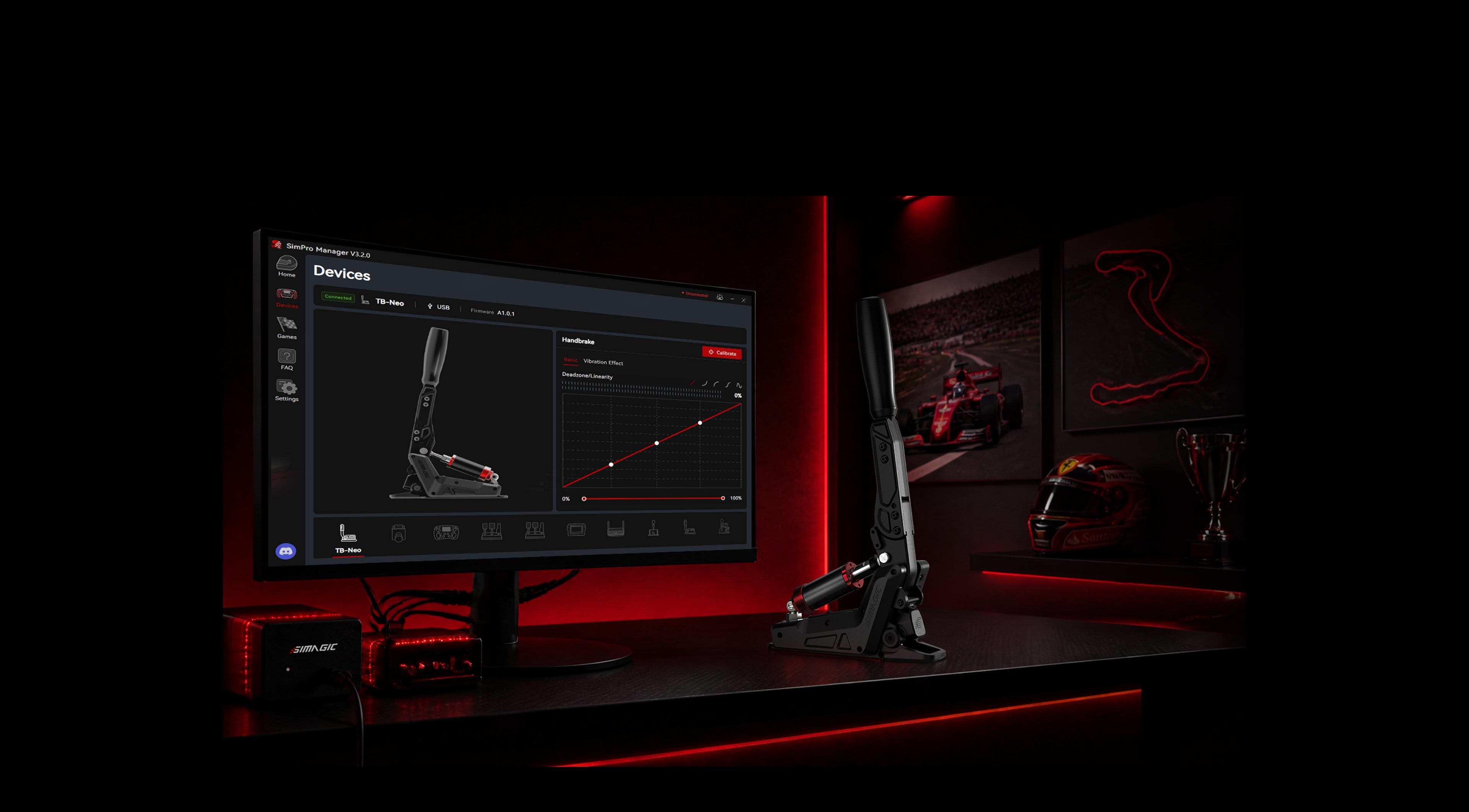

Tune Real-Time with SimPro Manager
Adjust response, travel and input curves through SimPro Manager. With compatible haptic modules installed, SimHub support unlocks deeper telemetry-driven control.
Specifications
| Product Name | TB-Neo Handbrake |
|---|---|
| Base Material | Aluminum Alloy, ABS + PC |
| Grip Material | POM |
| Load Cell Range | 100KG (Standard) |
| Resolution | 12-Bit (4096 Counts) High-Precision Sensor |
| Electrical Specifications | DC:5V/1A 5W MAX |
| USB Connection | PC, SIMAGIC Wheelbase |
| Adjustable Travel | Supported |
| Adjustable Spring Tension | Supported |
| Angle/Position Adjustment | Supported |
| Adjustable Linearity | Supported |
| Adjustable Resistance | Supported |
| Adjustable Deadzone | Supported |
| Dimension | 209.5 x 73.5 x 382.5 mm |
| Net Weight | 1.36kg |
| Included Elastomers | Yellow Spring ×2 + Damper Spacer ×3 (Pre-installed) Black O-Ring Elastomer ×8 Green O-Ring Elastomer ×8 Green T-Type Elastomer ×9 |
| Optional Acessories | P-HPR Haptic Pedal Reactor P-HPR GT Haptic Pedal Reactor P-APS Accessories Power Supply P-HYS Hydraulic Module P-HYSi Hydraulic Module P-ORP Brake Elastomer P-ORP(H) Hydraulic Brake Elastomer |
