467g Lightweight Design,
Strong and Agile
Integrated lightweight quick release design reduces weight and enables faster force feedback response.
CNC-machined from forged aluminum alloy for a durable, stable structure.

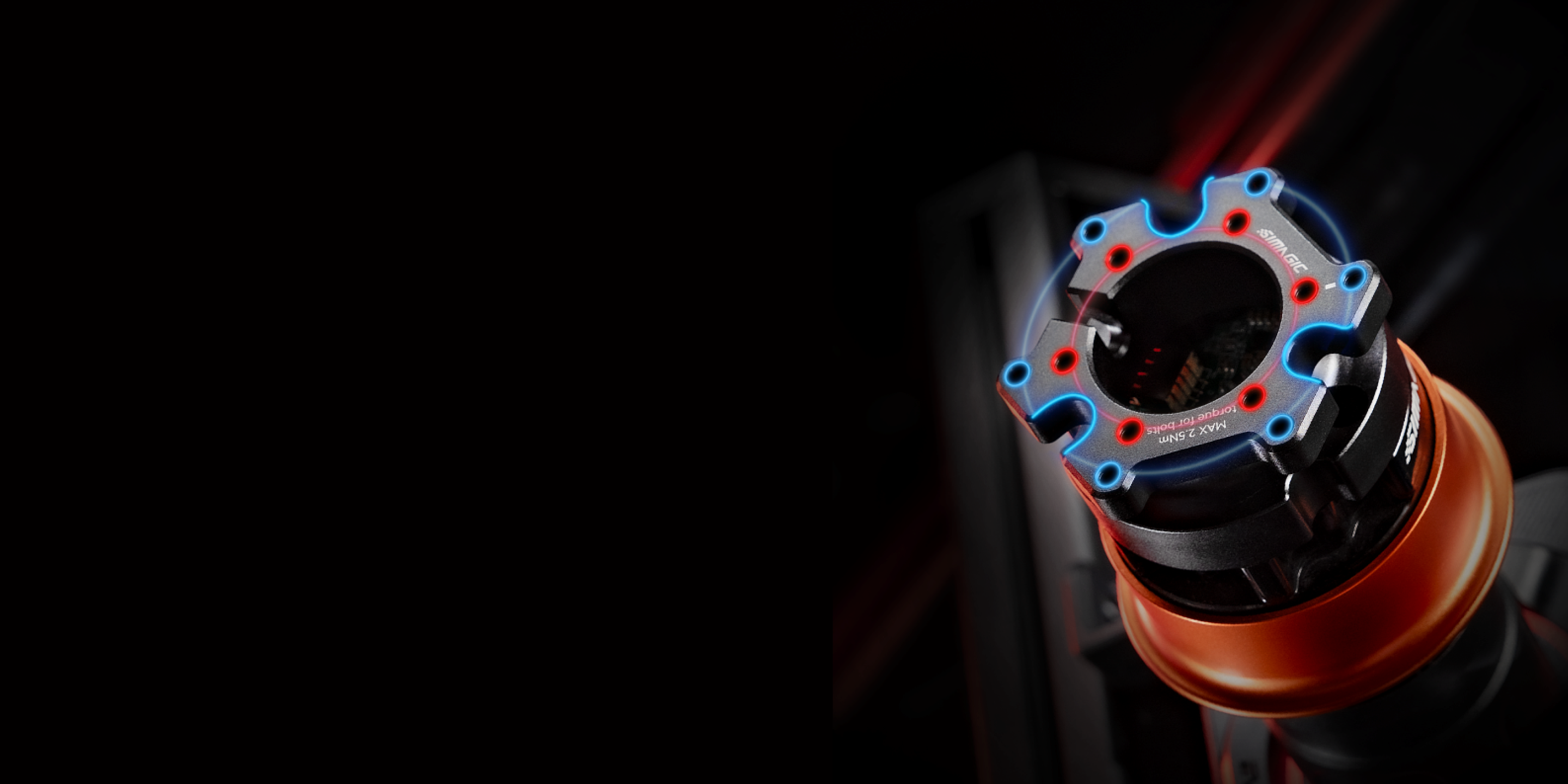

50/70mm Universal Mounting, Flexible and Hassle-Free
Supports standard 50mm and 70mm bolt patterns to fit most quick-release steering wheels.
The 70mm pattern offers dual mounting sets (front and rear) to accommodate various brand standards.

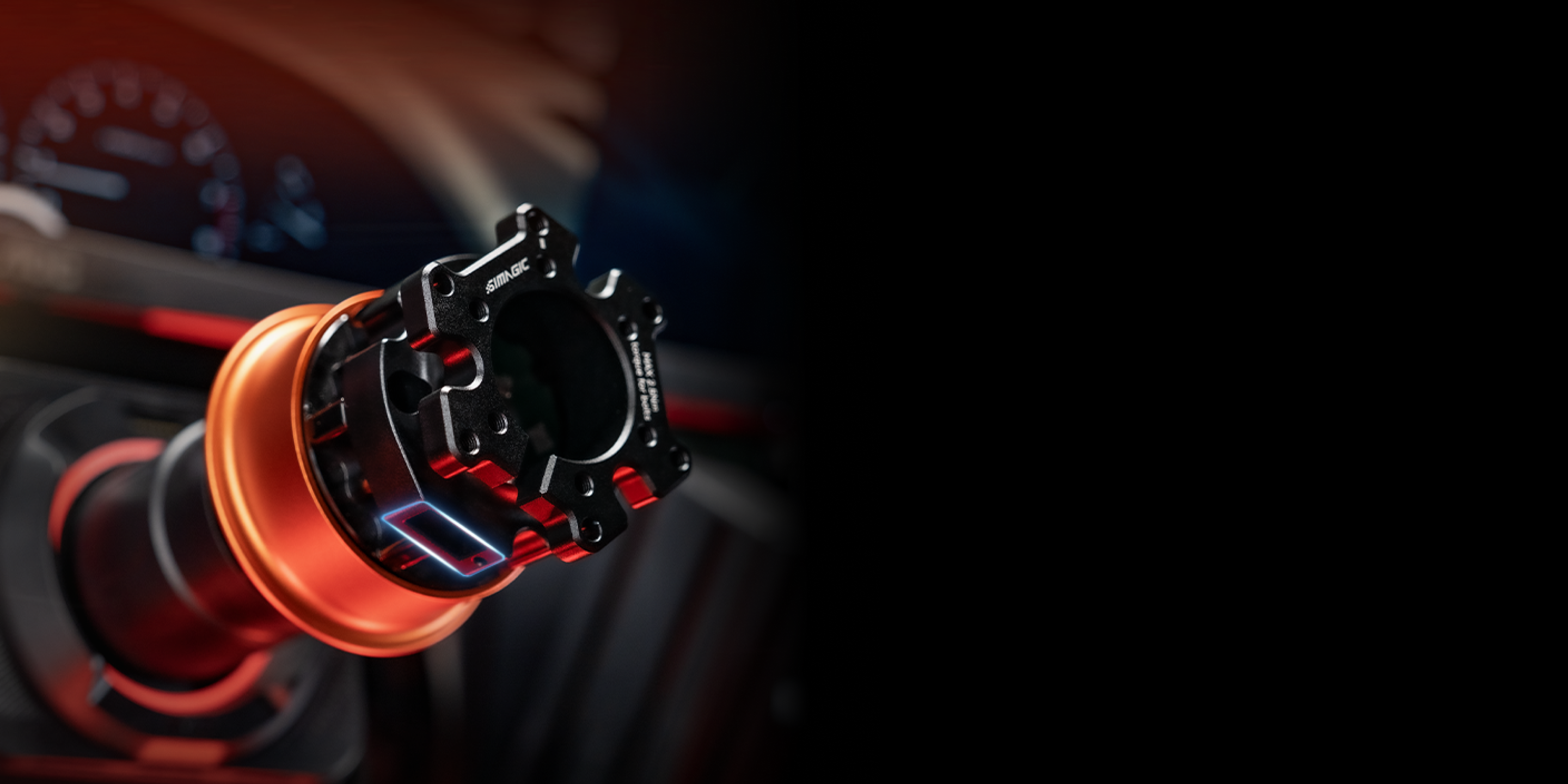

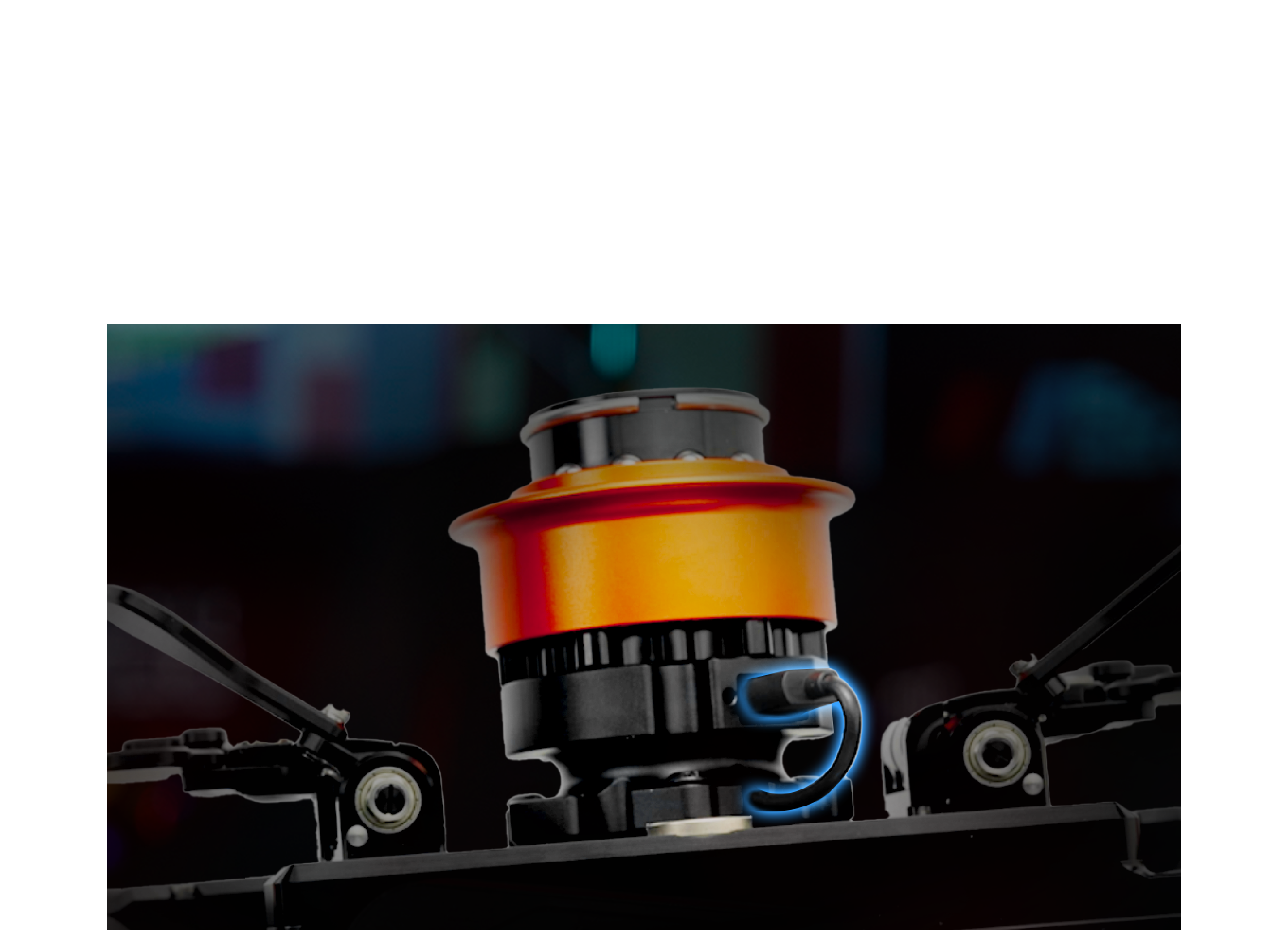

USB Interface, Reliable and Smooth Connection
Built-in USB port enables third-party wheels to connect directly to the Alpha EVO Wheelbase with plug-and-play functionality.
Product Specifications
| Product Name | QR-A Quick Release Adapter |
| Dimensions | 87x87x91mm |
| Weight | 467g |
| Material / Process | Forged aluminum alloy with CNC precision machining and anodized surface treatment |
| Compatibility (Supported Devices) | Alpha EVO Wheelbase, third-party steering wheelsls(USB PC connection supported) |
| Software Support | PC |
| Power Consumption | 5V⎓1.5A MAX |
| Accessories | USB-A to USB-C Data Cable |
Product Specifications
QR-A Quick Release Adapter
87x87x91mm
467g
Forged aluminum alloy with CNC precision
machining and anodized surface treatment
Alpha EVO Wheelbase, third-party steering wheels (USB PC connection supported)
PC
5V⎓1.5A MAX
USB-A to USB-C Data Cable
Officially Supported Compatible Steering Wheels
|
|
|
| F-CORE EVO | MCLAREN ARTURA ULTIMATE | Hyper P1 Rev B |
| F-PRO | MCLAREN ARTURA PRO | FPE V2 |
| CSX-3 | MCLAREN ARTURA SPORT | GT-MAX32 |
| Mercedes-AMG–GT Edition SIM Wheel |
MCLAREN ARTURA GT4 | Hyper SL |
| GT-X2 | F64 V3 | GXL V2 |
| GT PRO V2 | B16M-USB | X-29 |
| Astra | B16L-USB |
*Note: The above list includes third-party steering wheels that have been jointly tested by both brands and confirmed to perform well in terms of compatibility.
QR-A Usage Notice
If the steering wheel is not recognized by your computer after connection, please check the following:
- Ensure that the USB-C data cable on the back of the EVO base is properly connected to your PC.
- Confirm that the required drivers for the third-party steering wheel have been correctly installed.
- It is recommended to use shorter cables when connecting the QR-A to reduce transmission loss and ensure a stable connection.
- QR-A supports most USB-A third-party devices, but due to protocol differences, compatibility may vary. Please verify before use.
