Prepare for Device Setup

Click the FX Steering Wheel icon at the bottom to enter its setting page. The top left of the interface displays the “Firmware Version” and “Connection Status”

FX RGB Settings

Each RGB button can be customized to reflect certain Telemetry Data (ABS/TC/PIT/DRS). *ONLY FOR SUPPORTED GAMES*

Click the FX Steering Wheel on the interface to customize lights, colors, and Telemetry.

SIMAGIC S-Ray Settings

S-Ray Colors (A future update will provide more light options for the S-Ray)

The S-ray can be customized to reflect certain Telemetry Data ( ABS/TC/PIT/DRS) *ONLY FOR SUPPORTED GAMES*

RPM light settings give you the ability to set colors at various RPM stages, Flash Modes, and LED Brightness.

Clutch Calibration

Users will need to complete the Calibration process before use. Please follow the Calibration Wizard to complete the Clutch Paddle calibration.

Clutch Paddle Synchronization

Sync Off: Each Clutch Paddle acts independently.

Sync On: Both Clutch Paddles are tied to the same axis. Both clutches must be pressed in order to reach 100% input.

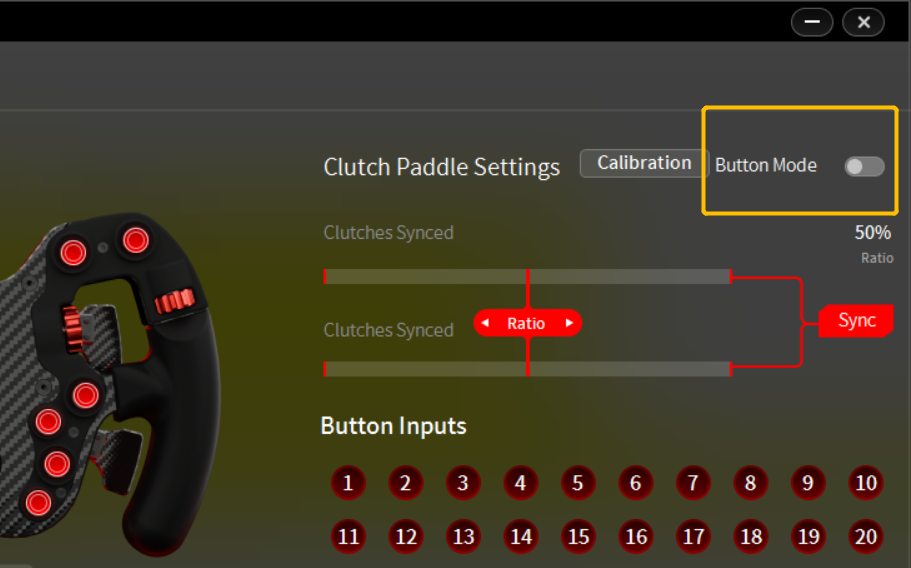

Clutch Button Mode

When Button Mode is Enabled, the Clutch paddles will act as digital buttons rather than an analog axis.

Button Input Check

This section is to check to see if all buttons and paddles are connected correctly

Save Settings

Once adjustments are complete, click on Create New Profile for future use.

After adjusting any setting, don’t forget to click “Save” to keep your changes.
